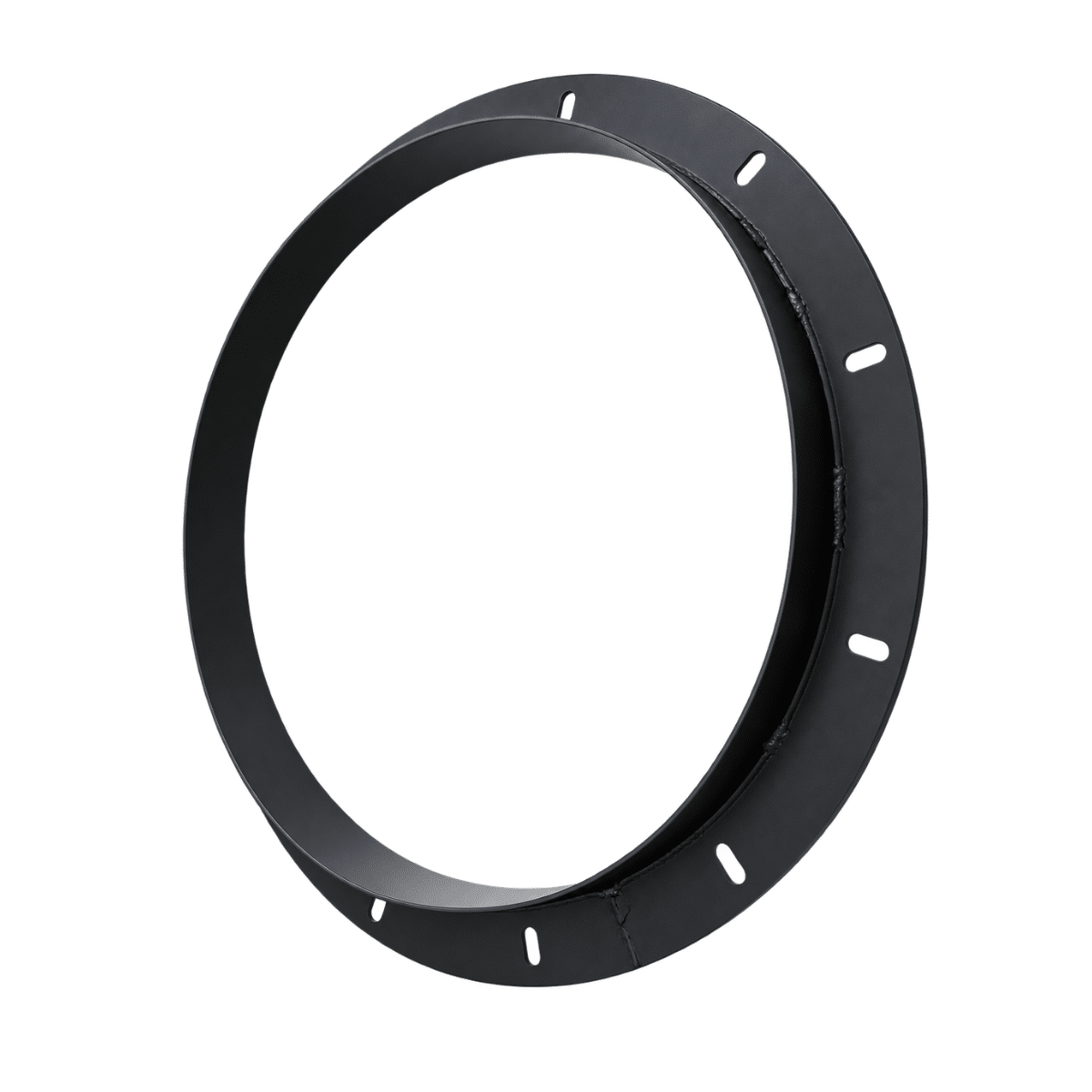

Fan Flange Adaptor – Fan to Spiral Duct Connection

The Fan Flange Adaptor is designed to provide a secure and straightforward connection between a ventilation or extraction fan with a bolted flange connection and spiral ducting. The adaptor features a flanged fan connection on one end and a spigot connection on the other, allowing the fan to connect directly into standard spiral ductwork.

Manufactured for use with industrial extraction, ventilation and spray booth systems, this adaptor provides a practical transition between different connection types while helping create a strong, properly supported ductwork connection.

The fan flange adaptor is particularly useful where spiral galvanised ducting is being installed onto extraction fans. The flanged end bolts directly to the fan outlet, while the spigot is inserted into the spiral duct and secured using suitable ductwork fixings.

Key Features

• Designed to connect flanged extraction fans to spiral ducting
• Bolted flange connection for secure attachment to the fan
• Spigot outlet designed to fit inside spiral ductwork
• Suitable for industrial ventilation and extraction systems
• Ideal for spray booth and paint extraction applications
• Manufactured for a strong and practical ductwork connection
• Helps simplify the installation of spiral ducting to fan outlets
• Available in a range of sizes to suit different fan and ductwork requirements

Typical Applications

The Fan Flange Adaptor is suitable for spray booth extraction, industrial ventilation, workshop extraction, paint mixing room extraction and general air movement systems where a flanged fan outlet needs to transition to spiral ductwork.

Please select the required size to match your fan outlet and spiral duct diameter.
