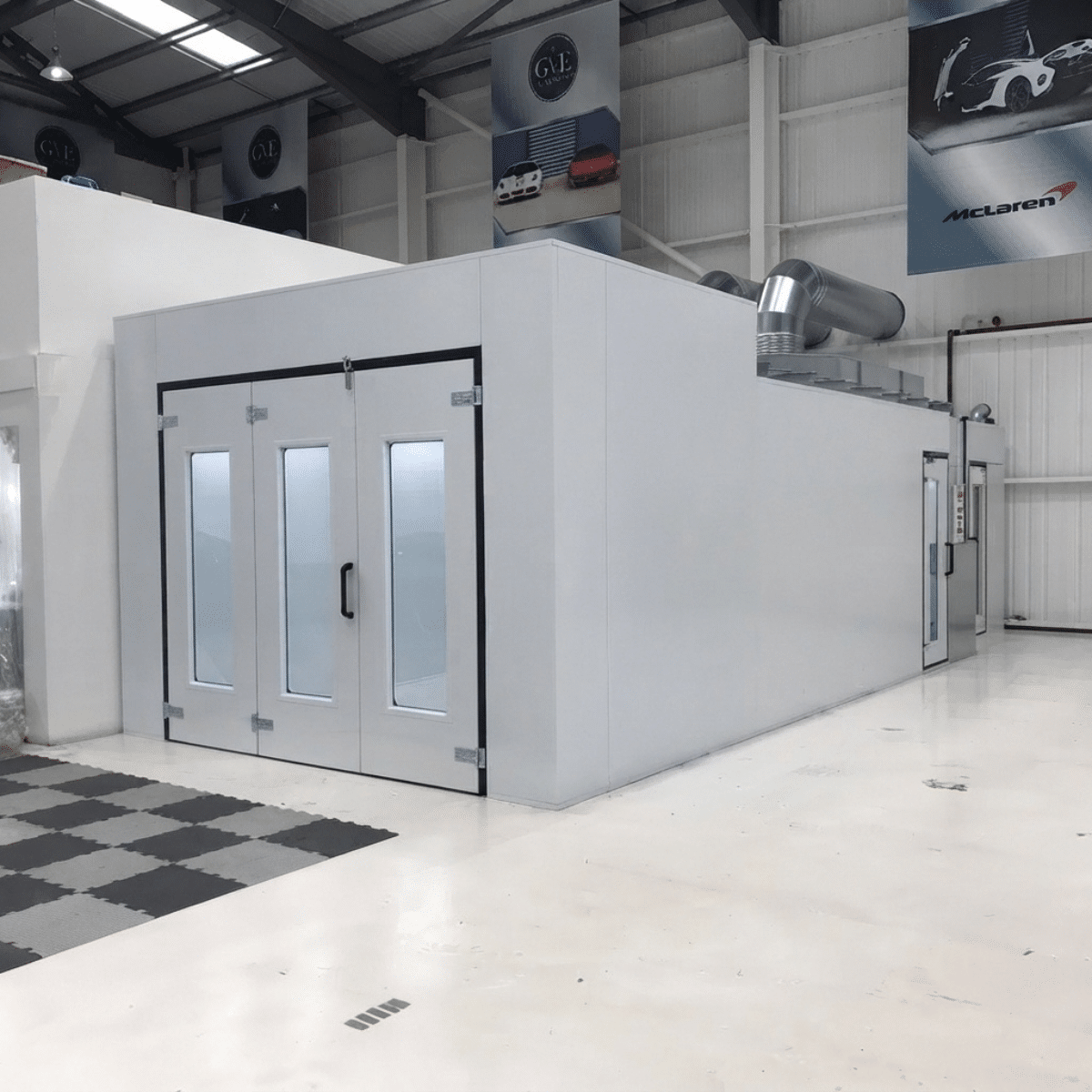

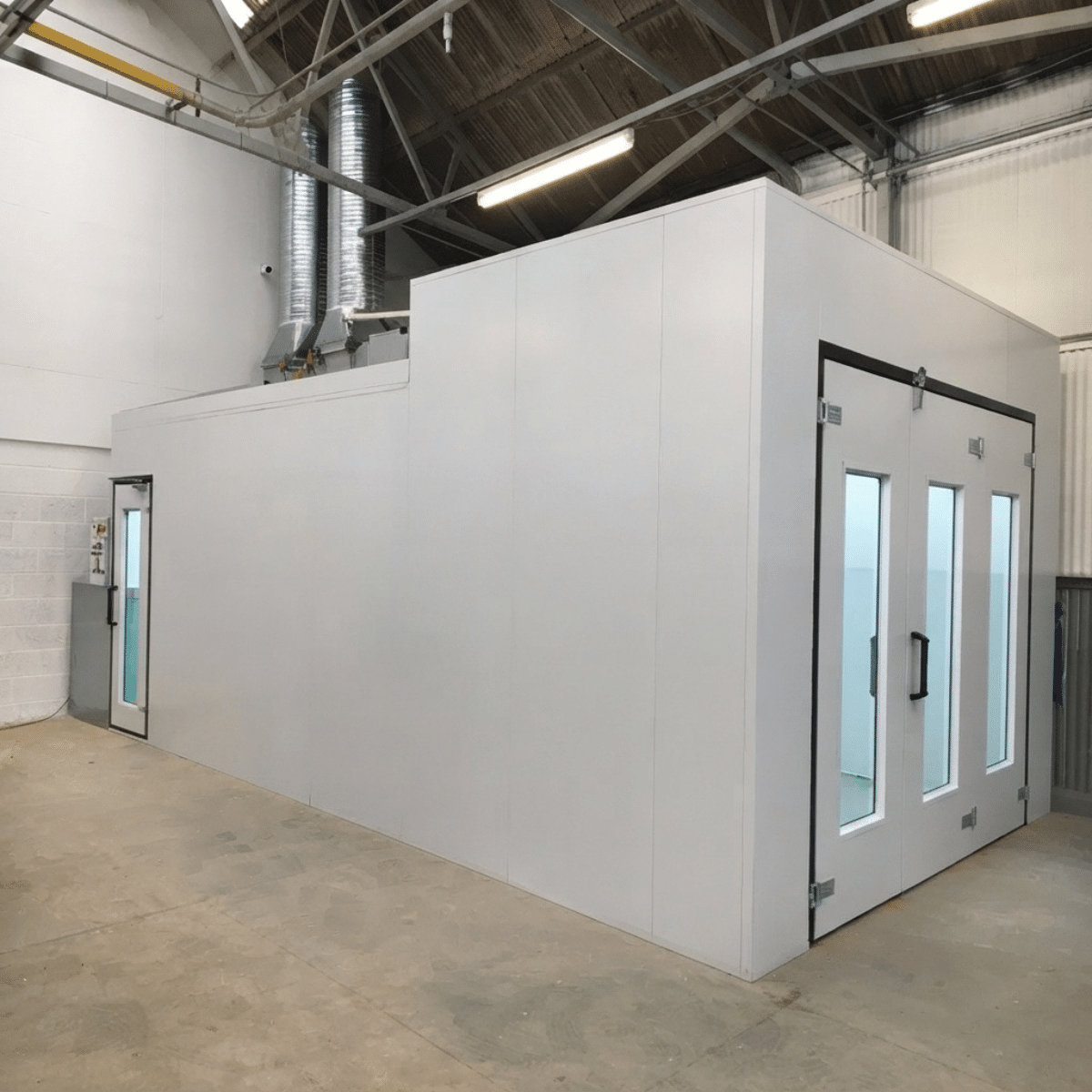

7m Long x 4m Wide x 3m High Heated Car Spray Booth Oven

Professional Vehicle Spray Painting and Controlled Curing

The 7m x 4m x 3m Heated Spray Booth Oven is designed primarily for automotive refinishing and professional car painting applications. Providing a spacious, controlled environment for vehicle preparation, spray painting and curing, this industrial spray booth combines robust insulated construction, efficient air handling and controlled heating to support consistent, high-quality finishing results.

With 7,000mm internal length, 4,000mm internal width and 3,000mm internal height, this booth offers ample working space for cars and a wide range of automotive refinishing requirements.

Robust, Insulated Construction

Constructed using premium-quality materials, the booth incorporates double-skin, rockwool-insulated galvanised steel panels. The white poly-coated internal and external finish creates a bright, professional working environment that is easy to clean and maintain.

The insulated panel construction provides excellent rigidity, corrosion resistance and thermal performance. Internally sealed panels also help maintain a clean, controlled workspace, supporting a professional vehicle finishing process.

Fully installed within UK mainland. Enquire now for the full list of price inclusions, exclusions and installation requirements.

Efficient Airflow and Heating

The booth features a semi-downdraught airflow arrangement, introducing air through the ceiling and extracting it through a wall-mounted extraction chest. This design promotes balanced airflow throughout the working area, helping to reduce overspray contamination and support consistent paint application.

A direct-fired, two-stage gas burner provides rapid temperature increases and controlled heating during spray and bake cycles. The system can be configured for natural gas or LPG, subject to the selected air-handling plant and site requirements.

This combination of controlled airflow and heating makes the booth suitable for professional automotive spray painting, flash-off and curing applications.

Key Features

• Internal dimensions: 7,000mm long x 4,000mm wide x 3,000mm high.
• Designed primarily for car painting and automotive refinishing.
• Double-skin, rockwool-insulated galvanised steel construction.
• White poly-coated internal and external finish.
• Direct-fired, two-stage gas burner.
• Semi-downdraught airflow system.
• Ceiling air input with wall-mounted extraction.
• Three-leaf, fully glazed entrance doors.
• LED PCB board lighting for excellent colour rendition.
• Direct-drive centrifugal fans with backward-curved impellers.
• Inverter drives for improved fan control.
• Push-button control panel.
• Two-stage extraction filtration.
• Suitable for natural gas or LPG heating configurations.

Energy-Efficient Options

The booth can be enhanced with optional energy-saving technologies to improve drying performance and help reduce operating costs.

Available options include:

• Airmax Blower System: High-velocity air movement to assist the drying of water-based automotive paints.
• Eco Mode: Automatic air recirculation during standby and flash-off periods.
• Energy-Saving Package: Variable speed drives, modulating burner and touchscreen control system.

These options help optimise airflow, heating and operating efficiency across different spray, flash-off and bake cycles.

Bespoke Configuration

Although this model is based on a 7m x 4m x 3m internal working area, additional options can be selected to suit individual automotive refinishing requirements.

Possible configurations include upgraded entrance doors, additional personnel doors, panoramic lighting, observation windows, side-loading skate and rail systems, and through-loading access.

A Professional Solution for Automotive Refinishing

The 7m x 4m x 3m Heated Car Spray Booth Oven offers a practical combination of working space, robust construction and controlled spray and curing performance.

Ideal for car bodyshops, automotive refinishing businesses and professional vehicle painters, it provides a dedicated environment for achieving consistent, high-quality paint finishes.

Contact APEX Coating Systems to discuss your requirements and request a tailored quotation.
