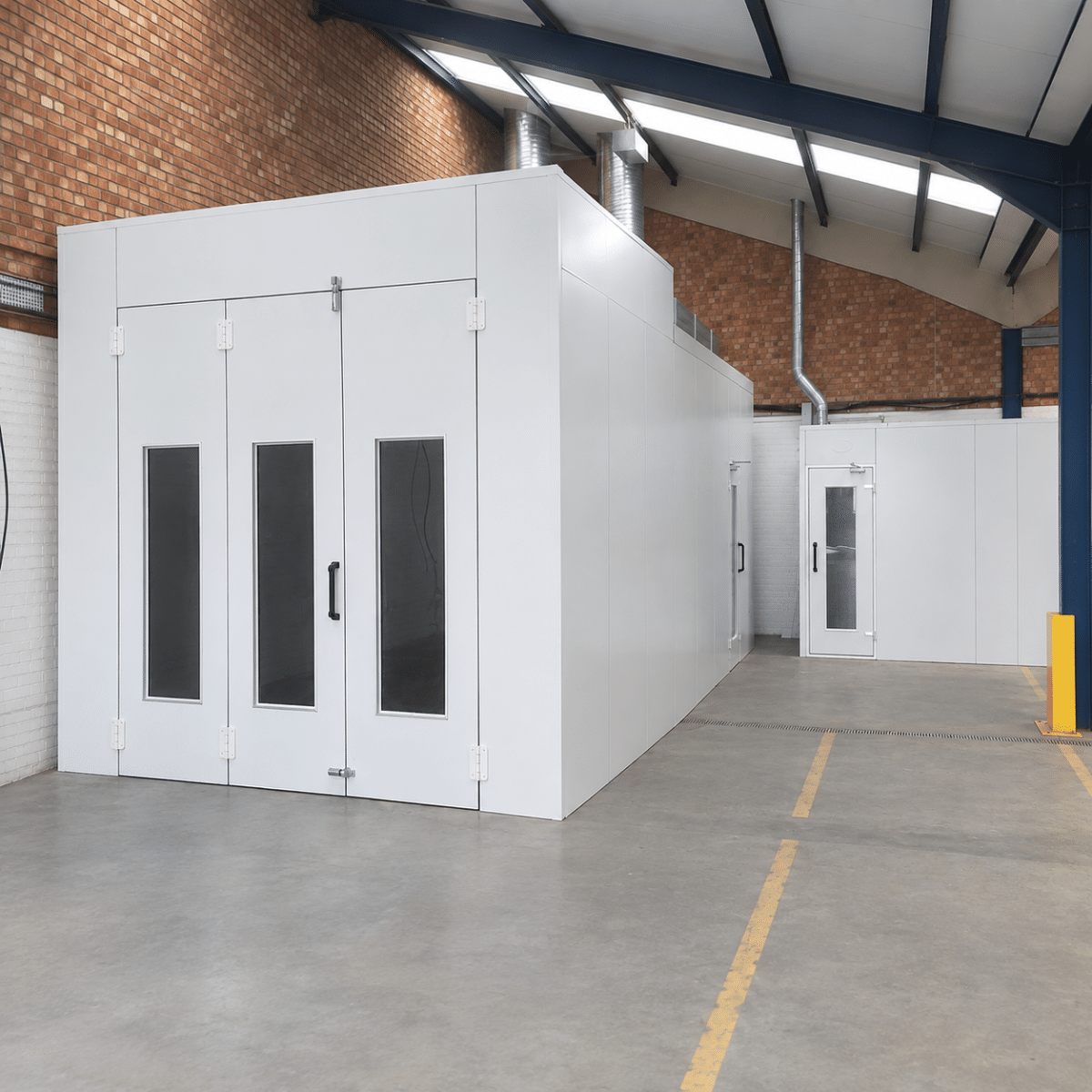

8m x 4m x 3m Heated Van Spray Booth – Automotive Refinishing

Professional Van Painting and Commercial Vehicle Refinishing

The 8m x 4m x 3m Heated Van Spray Booth is designed to provide a spacious, controlled environment for professional van painting and commercial vehicle refinishing. With its generous internal dimensions, this heated spray booth is ideal for businesses requiring additional working space for larger vehicles, including vans, minibuses and other commercial vehicles.

Combining robust insulated construction, efficient airflow and controlled heating, the booth provides a professional environment for achieving consistent paint finishes while supporting efficient drying and curing processes.

Spacious Working Area for Vans

With internal dimensions of 8,000mm long x 4,000mm wide x 3,000mm high, this spray booth offers ample room for positioning and working around larger vehicles.

The increased length makes it particularly suitable for van refinishing, allowing operators to access vehicle panels and carry out preparation and spraying more comfortably.

The 3,000mm internal height provides additional clearance for taller vehicles and equipment, subject to the final vehicle dimensions and site assessment.

Robust, Insulated Construction

The booth is constructed using double-skin, rockwool-insulated galvanised steel panels, providing a strong and durable structure for professional automotive applications.

The white poly-coated internal and external finish creates a bright, clean working environment that is easy to maintain. The insulated construction also helps support thermal performance during heated spray and curing cycles.

Internally sealed panels help maintain a controlled workspace and reduce the risk of contamination during the refinishing process.

Fully installed within UK mainland. Enquire now for the full list of price inclusions, exclusions and installation requirements.

Efficient Airflow and Controlled Heating

The heated spray booth incorporates a semi-downdraught airflow arrangement, with air introduced through the ceiling and extracted through a wall-mounted extraction chest.

This configuration promotes balanced airflow throughout the booth, helping to reduce overspray contamination and support consistent paint application.

A direct-fired, two-stage gas burner provides rapid temperature increases and controlled heating for spray, flash-off and curing applications. The system can be configured for natural gas or LPG, subject to the selected air-handling plant and site requirements.

The combination of controlled airflow and heating makes this booth suitable for professional van painting and commercial vehicle refinishing.

Key Features

• Internal dimensions: 8,000mm long x 4,000mm wide x 3,000mm high.
• Designed primarily for van painting and commercial vehicle refinishing.
• Suitable for larger vehicles, including vans and minibuses.
• Double-skin, rockwool-insulated galvanised steel construction.
• White poly-coated internal and external finish.
• Direct-fired, two-stage gas burner.
• Semi-downdraught airflow system.
• Ceiling air input with wall-mounted extraction.
• Fully glazed entrance doors.
• LED PCB board lighting for excellent colour rendition.
• Direct-drive centrifugal fans with backward-curved impellers.
• Inverter drives for improved fan control.
• Push-button control panel.
• Two-stage extraction filtration.
• Natural gas or LPG heating configurations available.

Energy-Efficient Options

The booth can be enhanced with optional energy-saving technologies to improve drying performance and help optimise operating costs.

Airmax Blower System

An optional high-velocity air blower system can assist the drying of water-based paints by improving air movement within the booth. This can help reduce flash-off and bake-cycle drying times.

Eco Mode

Eco Mode can automatically switch the booth into a recirculation or standby setting when active spraying has finished, helping to reduce unnecessary fuel consumption during idle periods.

Energy-Saving Package

An optional energy-saving package can include:

• Variable speed drives.
• Modulating burner.
• Touchscreen control system.
• Eco Mode.
• Automatic fan-speed adjustment for different operating modes.

These technologies are designed to optimise airflow, heating and energy consumption during spray, flash-off and bake cycles.

Bespoke Configuration Options

The 8m x 4m x 3m Heated Van Spray Booth can be configured to suit individual workshop requirements, available space and production processes.

Optional features may include:

• Upgraded entrance doors with larger double-glazed windows.
• Additional personnel doors.
• Panoramic LED lighting.
• Observation windows.
• Side-loading skate and rail systems.
• Through-loading configuration with additional rear doors.
• Alternative air-handling plant capacities.
• Bespoke booth dimensions and layouts.

Our team can help you select the appropriate configuration based on your vehicle sizes, required working area, airflow requirements and available workshop space.

A Professional Solution for Van Refinishing

The 8m x 4m x 3m Heated Van Spray Booth offers a practical combination of generous working space, robust construction and controlled spray and curing performance.

Ideal for commercial vehicle bodyshops, van conversion businesses and professional refinishing companies, this booth provides a dedicated environment for achieving consistent, high-quality paint finishes on larger vehicles.

Contact APEX Coating Systems to discuss your requirements and request a tailored quotation.
