Andreae High-Efficiency Spray Booth Extract Filter  – 0.9m x 9m (AF923)

Andreae AF923 High-Efficiency Spray Booth Extract Filter

Upgrade your paint booth’s exhaust system with the Andreae High-Efficiency (HE) AF923 Filter. Each filter measures 90cm x 9m and is designed to outlast traditional fiberglass, expanded paper, and styrofoam media.

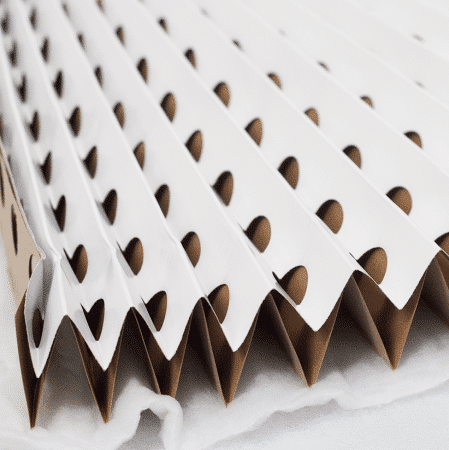

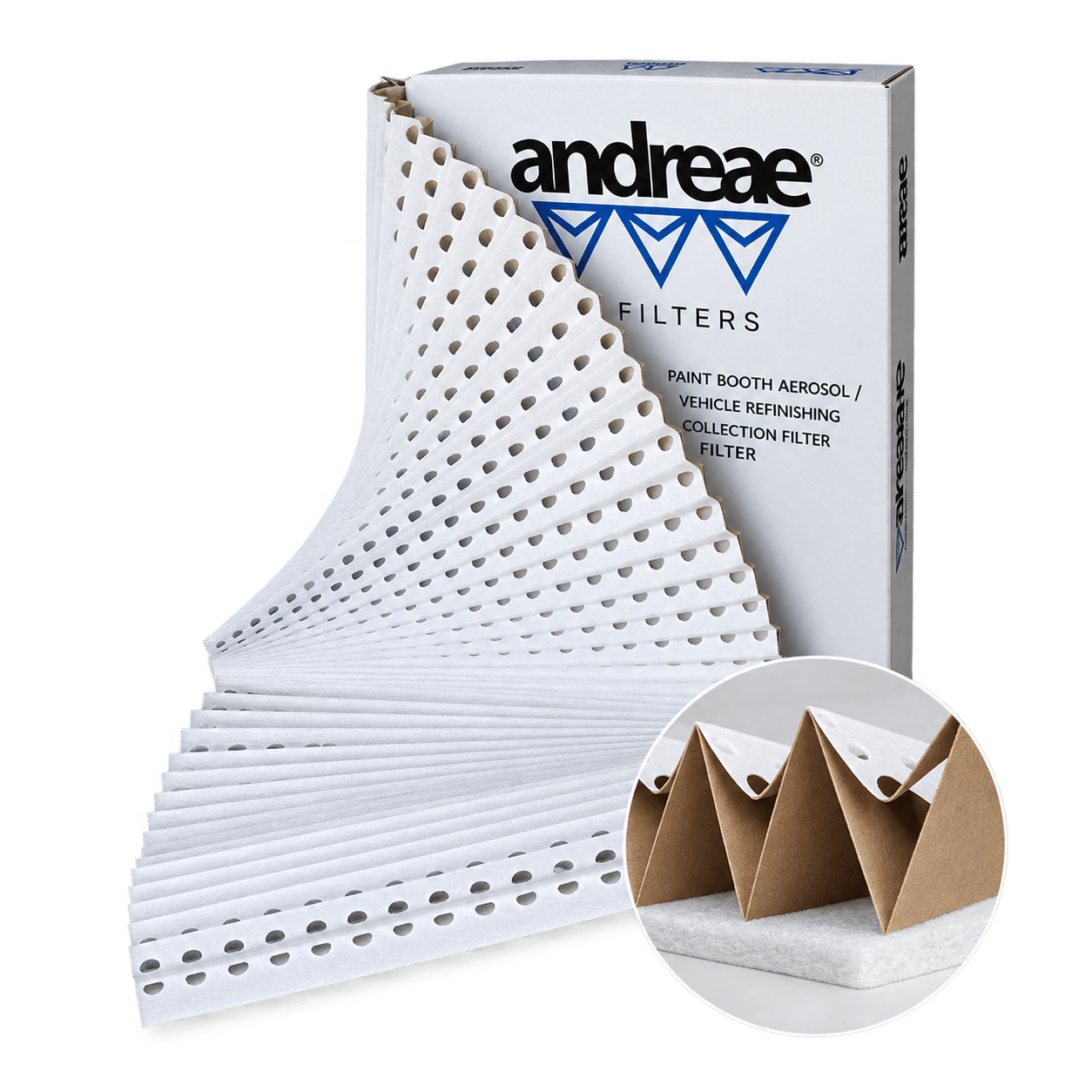

Constructed from two layers of heavy-duty, punched, and pleated kraft paper, this EPA-compliant accordion filter features an added synthetic polyester backing layer. This dual-stage design maximizes filtration efficiency without sacrificing airflow.

How Inertia Separation Works

Unlike standard mesh filters that suffer from face-loading, Andreae filters utilize inertia separation. As the paint-laden airflow travels through the filter, it is forced to change direction multiple times. Because overspray particles are heavier than air, they follow a tangent trajectory and crash into the deep, V-shaped holding pockets. This deposits the paint outside of the direct airflow, allowing clean air to exhaust efficiently.

Key Benefits

• Superior Holding Capacity: Holds up to 5 times more overspray than standard fiberglass filters.

• Zero Bounce-Back: The V-shaped front wall prevents particle migration and overspray bounce-back.

• Consistent Airflow: Misaligned exhaust holes ensure static pressure increases slowly, maintaining a uniform airflow around the parts being sprayed.

• Maximum Uptime: Fewer filter changes mean less downtime and higher spray booth productivity.

• Eco-Friendly & Safe: Provides a cleaner environment for operatives while remaining easy to install and dispose of.

Technical Specifications & Performance Data

General Specs:

• Dimensions: 90cm (Height) x 9m (Length)

• Recommended Air Velocity : 0.5 – 1.00 m/s

• Max Recommended Pressure Drop : 128 Pa (Absolute max up to 256 Pa)

Holding Capacity (Load):

• Lacquers : 13 kg/m²
• High Solids : 20 kg/m²
• Polyester : 20 kg/m²

Filtration Efficiency:

• Lacquers : 97.0%
• High Solids : 98.5%
• Polyester : 99.2%

Pressure Drop:

• 0.5 m/s : 21 Pa
• 0.75 m/s : 32 Pa
• 1.0 m/s : 42 Pa
