Fibreglass Paint Stop Filter Roll – 50mm x 1m x 20m

Paint Stop Filter Roll – 50mm x 1m x 20m (Standard Paint Booth Media)

Ensure optimal exhaust filtration and compliance in your finishing workspace with the Paint Stop Filter Roll (50mm x 1m x 20m). Engineered specifically for professional spray booths and industrial paint shops, this high-density fiberglass media is the industry-standard solution for capturing wet and dry overspray from a wide variety of coatings.

Whether you are running a automotive refinishing shop, a woodworking finishing room, or a general industrial manufacturing line, this economical roll provides reliable depth-loading performance to protect your exhaust fans and ductwork.

How Paint Stop Media Works

Unlike surface-loading paper filters, fiberglass paint stop filters utilize progressive density construction. The glass fibers are tightly woven on the clean air side and looser on the dirty air side. As the paint-laden air passes through the 50mm thickness, particles are trapped throughout the entire depth of the media rather than clogging instantly on the surface. This maximizes your filter life and maintains steady airflow.

Key Benefits

• High Holding Capacity: Progressive density design allows the pad to absorb heavy overspray volumes before requiring a change.

• Cost-Effective Filtration: An economical choice for high-turnover spray booths and general exhaust systems.

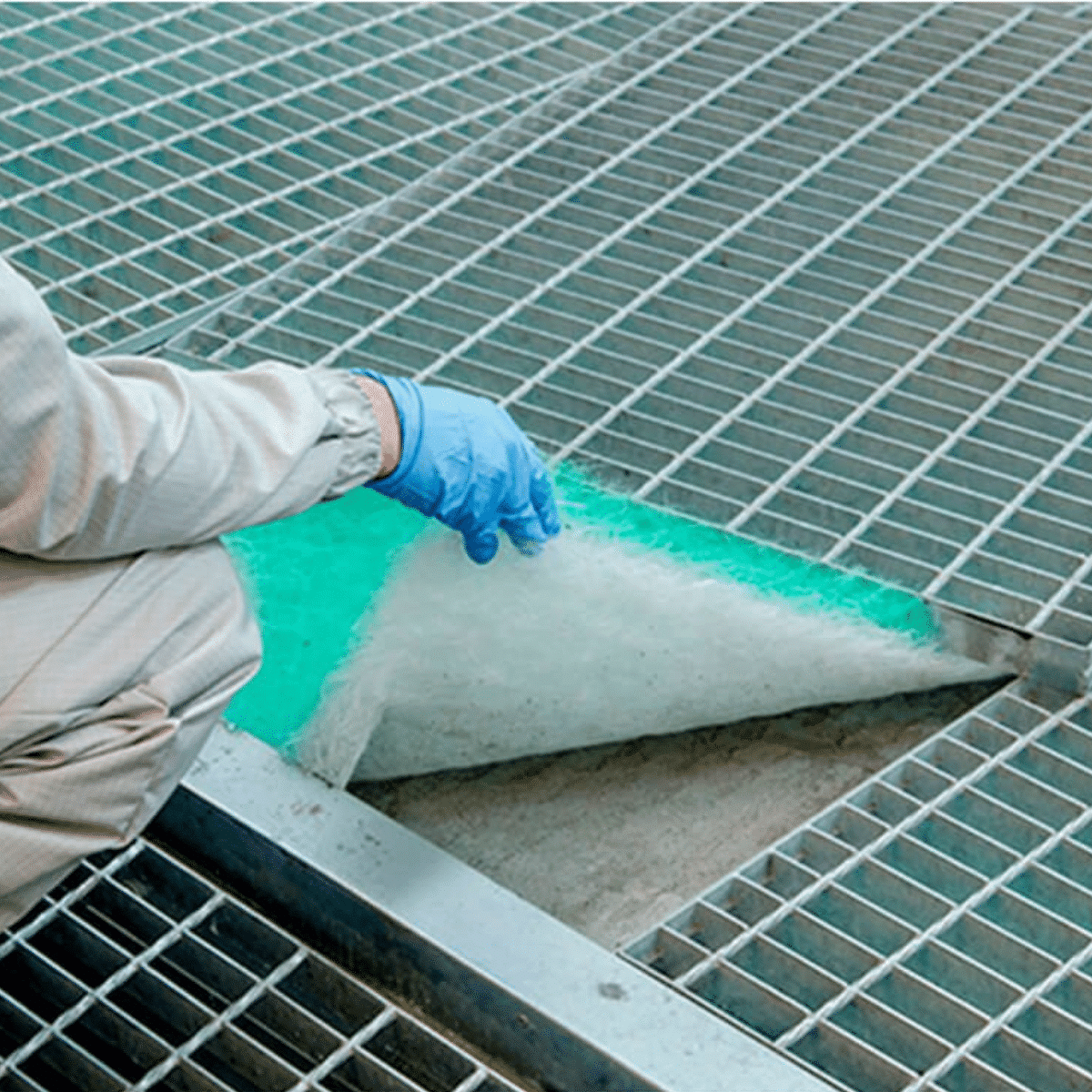

• Easy to Cut and Install: Flexible fiberglass roll can be easily cut with a utility knife to fit custom-sized frame grids, holding racks, or floor pits.

• Reduced Maintenance Costs: Prevents sticky paint build-up on expensive exhaust fans, motors, and stack components, lowering fire risks.

• Broad Compatibility: Works efficiently with solvent-based paints, water-based coatings, lacquers, synthetic enamels, and primers.

Technical Specifications & Performance Data

General Specs:

• Product Type: Standard Fiberglass Paint Stop Filter Roll

• Thickness: 50mm (2 inches)

• Dimensions: 1m (Width) x 20m (Length)

• Material: Continuous filament glass fibers bonded with a synthetic resin

• Color: Green front / White back (standard identification for airflow direction)

Performance & Filtration:

• Initial Resistance (at nominal velocity): ~15 Pa to 25 Pa

• Recommended Final Pressure Drop: 250 Pa (Change point)

• Average Arrestance Efficiency: Up to 93% – 95% (Depending on paint type and airflow)

• Recommended Face Velocity: 0.75 m/s to 1.5 m/s

• Temperature Resistance: Up to 100°C
