Belt Driven Axial Fan

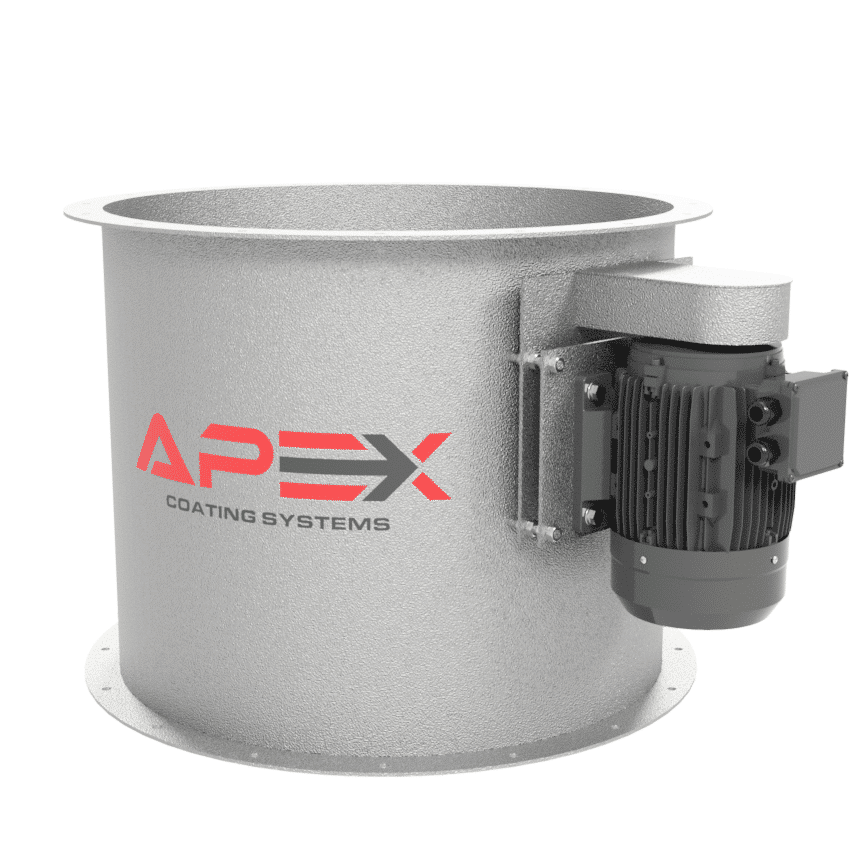

APEX Belt Driven Axial Fan – Industrial Ventilation & Spray Booth Extraction

The APEX Belt Driven Axial Fan is a high-performance ventilation solution designed for spray booth extraction, paint booth ventilation and general industrial air movement. Manufactured for demanding commercial and industrial applications, the APEX axial fan provides reliable, high-volume airflow for effective extraction and ventilation.

Ideal for spray booth installations, workshops, factories, warehouses and manufacturing environments, the APEX belt driven axial fan offers a robust and versatile solution where dependable air extraction is essential.

High-Volume Airflow for Industrial Applications

The APEX belt driven axial fan is designed to move large volumes of air efficiently, making it particularly well suited to applications requiring high airflow and continuous ventilation.

The belt drive configuration provides flexibility when selecting the required fan speed and motor arrangement, allowing the fan to be specified to suit different system requirements.

Ideal for Spray Booth Extraction

Effective airflow is essential for spray booth ventilation and extraction. The APEX Belt Driven Axial Fan can be incorporated into suitable spray booth systems to provide the high-volume air movement required for effective extraction.

Typical applications include:

• Spray booth extraction
• Paint booth ventilation
• Industrial extraction systems
• Workshop ventilation
• Factory and manufacturing ventilation
• Warehouse ventilation
• General industrial ventilation
• Process ventilation
• High-volume air extraction

Flameproof Motor Option for Zoned Areas

For installations where the fan is located within a zoned hazardous area, APEX can provide a flameproof motor option to meet the requirements of suitable hazardous-area applications.

This option is particularly relevant for certain spray booth and paint finishing environments where flammable vapours or atmospheres may be present.

The correct motor specification will depend on the hazardous-area classification, zone, gas or vapour group and temperature class of the installation. APEX can assist with specifying the appropriate motor configuration for your application.Available Fan Diameters

APEX Belt Driven Axial Fans are available in a range of standard diameters to suit different airflow and installation requirements:

400mm | 500mm | 630mm | 710mm | 800mm

Fan size and specification can be selected to suit the required airflow, pressure and application.

Robust Construction & Standard Finish

Designed with industrial environments in mind, the APEX Belt Driven Axial Fan provides a practical solution for both new ventilation installations and replacement fan systems.

The standard finish is silver Hammerite, providing a durable protective coating suitable for demanding industrial environments while giving the fan a clean, professional appearance.

Available in a range of configurations and sizes, the APEX fan can be selected according to the required airflow, pressure, fan speed and motor specification.

Key Features

• High-volume airflow performance
• Belt driven axial fan design
• Ideal for spray booth extraction
• Suitable for paint booth ventilation
• Suitable for general industrial ventilation
• Robust construction
• Standard silver Hammerite finish
• Flameproof motor option available for suitable zoned areas
• Flexible motor and fan configurations
• Suitable for new and replacement installations
• Available in multiple sizes and performance configurations

APEX Coating Systems – Industrial Ventilation Fans

From spray booth extraction to general industrial ventilation, the APEX Belt Driven Axial Fan provides a dependable solution for high-volume air movement and extraction applications.

With options including a flameproof motor for suitable hazardous-area installations and a standard silver Hammerite finish, APEX can provide a ventilation fan solution tailored to the demands of industrial and spray finishing environments.

Apex Coating Systems can help specify the appropriate fan size, airflow capacity and motor configuration for your application. Contact APEX to discuss your spray booth ventilation, hazardous-area or industrial extraction requirements.
