BS290 (Blue and White) Spray Booth Filter 1m x 20m Roll

BS290 Spray Booth Intake Filter (Blue & White Roll)

Also known as PST290, the BS290 is a synthetic media filter roll designed to protect spray booth environments by filtering air both entering and leaving the booth. Constructed from progressive-density synthetic media, the BS290 provides efficient, cost-effective, and long-lasting filtration for a wide range of spray booth and HVAC applications.

Construction

The BS290 is manufactured from synthetic filter media in G3/G4 and M5 grades, conforming to EN 779:2012 / ISO 16890 standards for air filter performance:

The media features a progressive structure, meaning the full depth of the material is utilized during filtration rather than just the surface layer. This results in higher dust-holding capacity and extended service life compared to standard flat media.

Performance

• Coarse particle capture — effectively filters dust particles larger than 10 µm (G3/G4 stages)
• Fine particle protection — M5-grade media protects against fine dust down to 10 µm, ideal for spray booth ceiling/inlet applications
• High dust-holding capacity — progressive density structure maximizes use of the full media depth
• Extended service life — cost-effective and long-lasting compared to conventional media
• Standards compliant — conforms to EN 779:2012 / ISO 16890

Applications

The BS290 is a versatile media used at multiple points in the spray booth filtration system:

• Spray booth ceiling/inlet filtration — protecting the booth’s clean air supply from fine dust contamination
• Secondary extract filtration — used downstream of primary paint overspray collectors as a secondary stage, catching any particulate that passes through the main filters
• Last line of defence for the fan — in some installations, positioned as the final filtration stage ahead of the extraction fan, protecting it from particulate buildup and deposits
• HVAC pre-filtration and main filtration — coarse dust removal in ventilation systems
• Pleated media support
• Panel filters
• Electronic cabinet filtration

By keeping air free of coarse and fine particulates at both inlet and extract stages, the BS290 helps protect critical equipment — keeping motors, fans, and air exhaust ducts free of deposits and extending their service life.

Identification

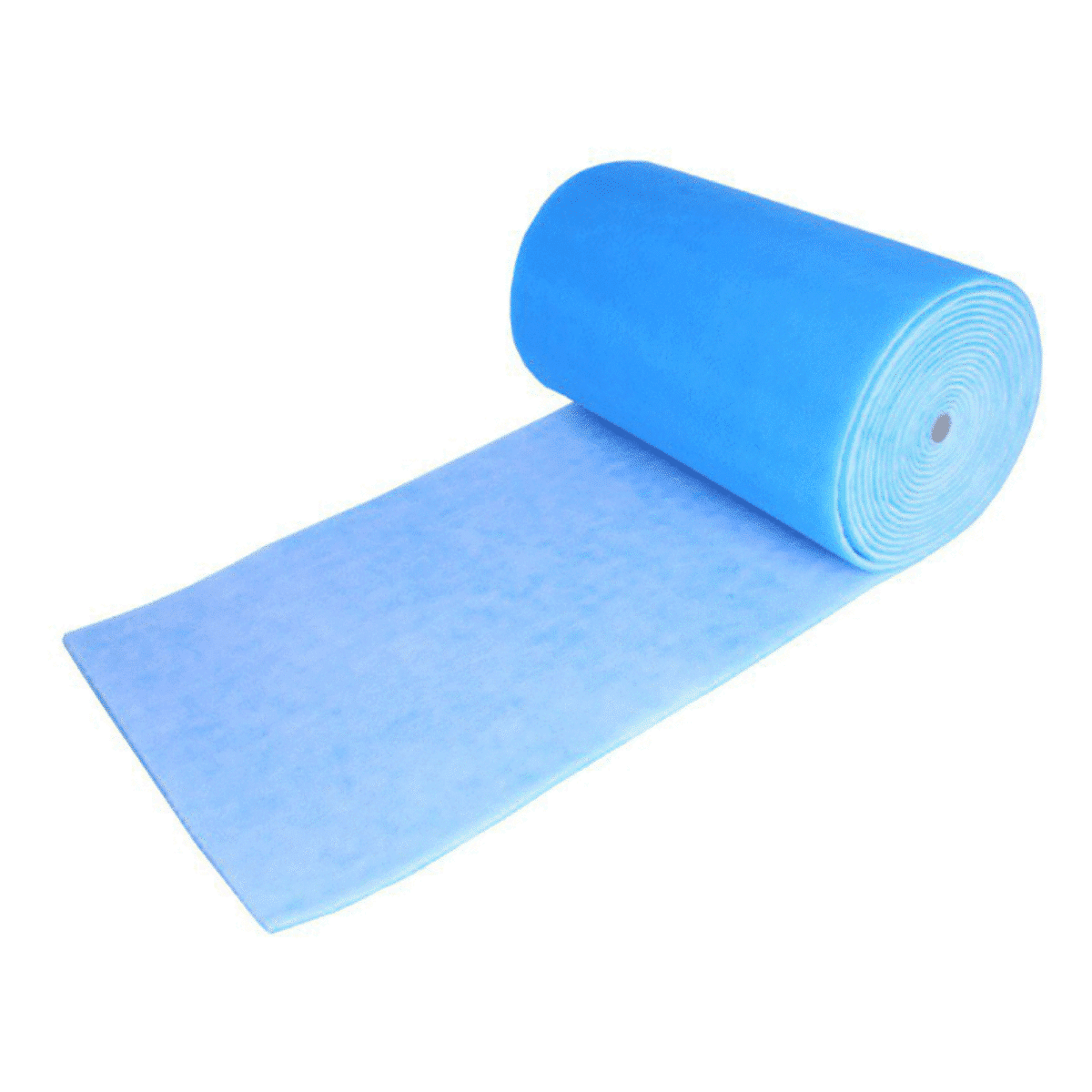

Easily recognized on the roll by its distinctive blue and white construction. Also supplied under the name PST290.

Key Benefits:

• Progressive-density media maximizes dust-holding capacity and service life
• Protects spray booth air supply and extract system from coarse and fine particulates
• Doubles as secondary extract filtration and fan protection
• Cost-effective, long-lasting synthetic construction
• Conforms to EN 779:2012 / ISO 16890 standards
• Extends service life of motors, fans, and exhaust ductwork
• Versatile use across spray booth and HVAC applications
