G4 Pleated Panel Filter 600x600x50mm (24″x24″x2″) — Box of 10

G4 Pleated Panel Filter — 600mm x 600mm x 50mm (24″ x 24″ x 2″)

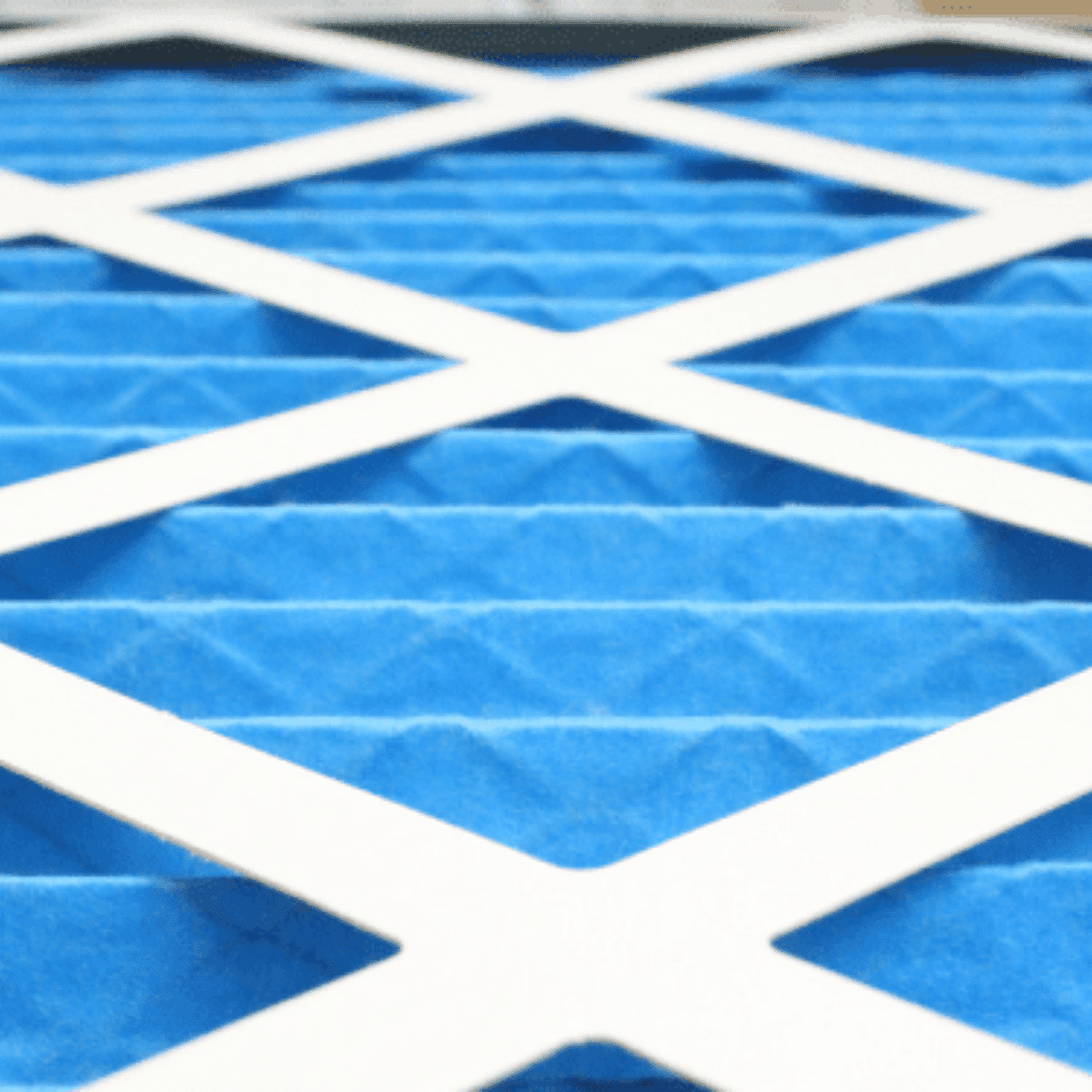

Pleated Panel Filters are amongst the most common air filters used in heating and ventilation systems, and are a popular choice for spray booth intake filtration. By using a pleated media on a supporting wire, they offer a large surface area while minimising pressure drop. This disposable panel filter uses a synthetic media that is pleated to provide increased filter area, bonded to a fine metal mesh for strength and uniform pleat construction, and encapsulated in a rigid, moisture-resistant cardboard frame for a long-lasting panel filter.

Construction

The pleated filtration material is sealed and fixed into the cardboard frame, giving a rigid, long-lasting panel filter available in various thicknesses and grades to suit different levels of protection.

Performance

• Coarse particle capture — effectively filters dust particles larger than 10 µm at G4 grade
• Large surface area — pleated construction on a supporting wire minimises pressure drop and improves dust-holding capacity
• Structural strength — media bonded to fine metal mesh ensures uniform, durable pleat construction
• Standards compliant — conforms to EN 779:2012 / ISO 16890

Applications

The G4 Pleated Panel Filter is most commonly used for:

• Spray booth input/intake filtration — protecting the booth’s incoming air supply from coarse dust and contaminants before it reaches the work area
• HVAC systems and air handling units — where an increased level of protection is required
• Coarse dust pre-filtration — protecting downstream finer filters and equipment
• General ventilation applications across commercial and industrial buildings

By capturing coarse particulate at the intake stage, the G4 Pleated Panel Filter helps ensure clean air enters the spray booth, reducing the risk of contamination in the finish and protecting downstream fans and equipment from particulate buildup.

Available Options

• Grades G4 to F9 available (as per EN 779:2012)
• Wide range of sizes available beyond the standard 600mm x 600mm x 50mm (24″ x 24″ x 2″)
• Supplied in boxes of 10

Key Benefits:

• Pleated media on supporting wire maximises surface area and minimises pressure drop
• Ideal for protecting spray booth air supply from coarse contaminants
• Metal mesh bonding provides strength and uniform, long-lasting pleat construction
• Rigid, moisture-resistant cardboard frame for durability
• Disposable and cost-effective
• Available across a wide range of grades and sizes
• Conforms to EN 779:2012 / ISO 16890 standards
