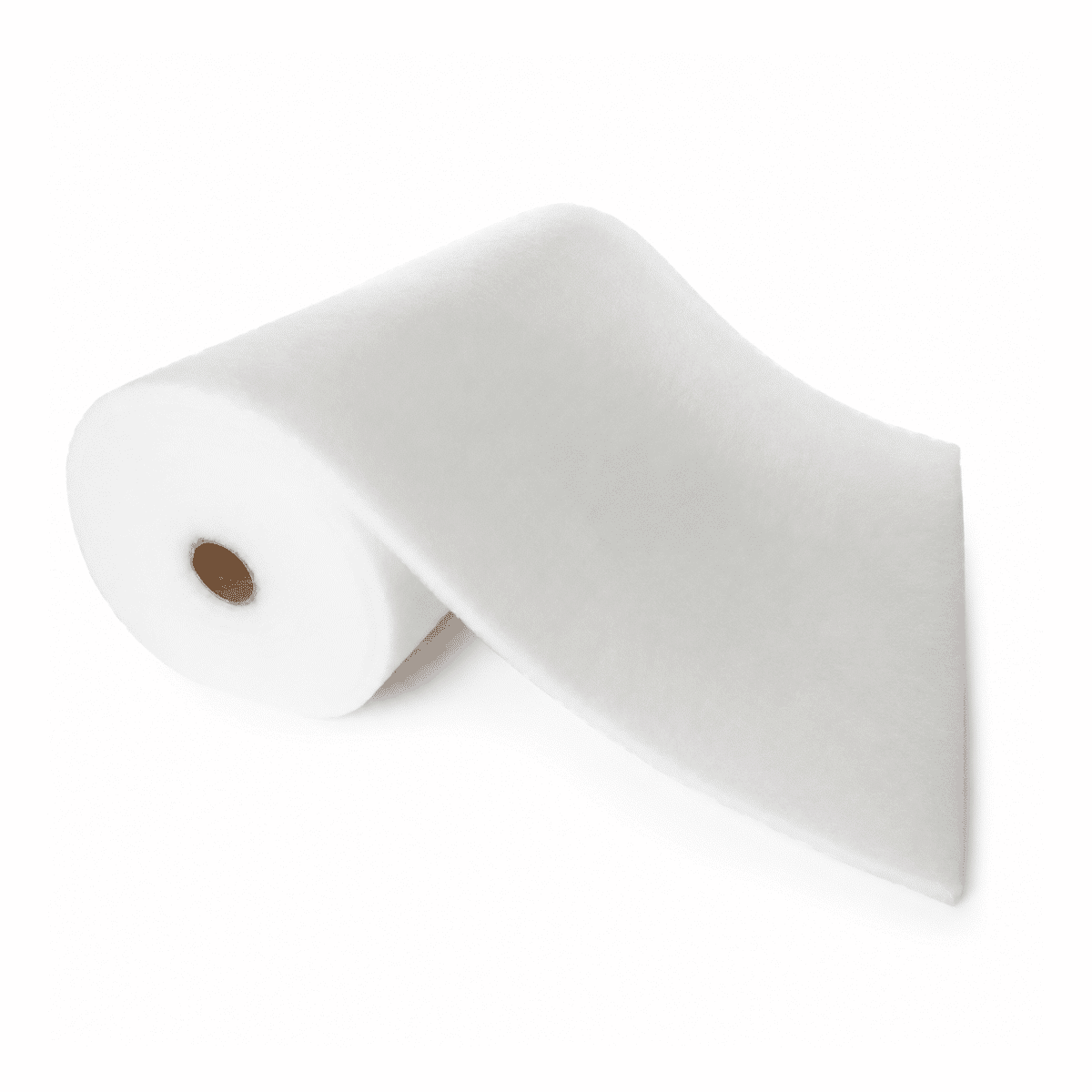

EC560G Tackified Spray Booth Input Filter 1m x 20m Roll

Spray Booth Input Filter Roll – Tackified – EC560G

(also known as TA600)

Engineered to deliver uniform depth loading with optimal low pressure drop performance across the full life of the filter, the EC560G is a synthetic fibre-based non-woven input filter roll. Supplied as a 1m x 20m roll.

Key Features:

• 100% Saturated Tackifier Adhesive – A special adhesive treatment saturates the entire media, preventing particle migration down to 5 microns and stopping captured contaminant from shaking loose or passing through during operation.
• Gradient Density Structure – Ensures uniform laminar airflow throughout the spray booth, supporting consistent finish quality.
• Non-Discolouring High-Temperature Scrim Backing – Maintains performance and appearance under sustained booth conditions.
• F5 and F6 Efficiency Ratings – Classified as per EN 779-2012.
• Certified Performance – DIN-CERTO Certification and Paint Compatibility Lacquer Test Certificates available on part of the product range.
• Automotive Approved – Approved by major automotive manufacturers.

Roll Specification:

• Width: 1m
• Length: 20m

Also known as / searched as: TA600, tackified input filter roll, spray booth intake filter, EN 779 F5/F6 spray booth filter

Why Choose the EC560G?

With its saturated tackifier adhesive and gradient density construction, the EC560G is built to hold fine particulate in place while maintaining consistent, low-restriction airflow — helping protect finish quality and reduce strain on downstream exhaust filtration.
