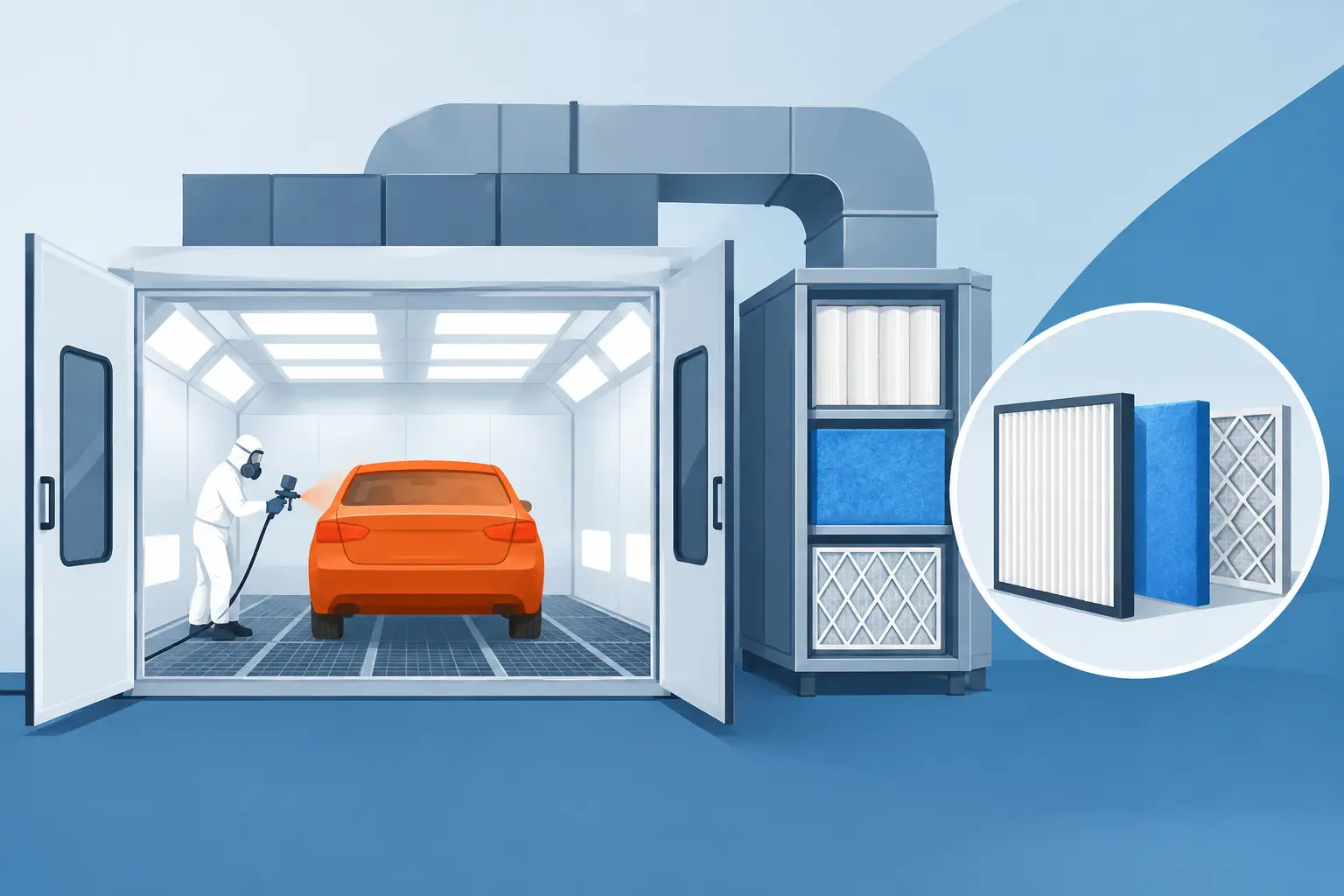

Choosing Spray Booth Filtration Systems

A paint finish can look acceptable as it leaves the gun yet still fail inspection once dust, overspray or airflow disturbance has had time to show. That is why spray booth filtration systems deserve the same attention as the booth structure, extraction fan and heating arrangement. They control the quality of air entering and leaving the working area, protect ductwork and fans from paint build-up, and help create conditions in which operators can produce repeatable results.

For a bodyshop, joinery workshop or industrial coating line, there is no single filter arrangement that suits every application. The right system depends on the coating material, spray volume, booth airflow, product size and required finish standard. A system designed for occasional metal fabrication work will not necessarily support the demands of high-throughput vehicle refinishing or fine furniture finishing.

How spray booth filtration systems work

Most professional booths use filtration at more than one point in the airflow path. Air enters through intake filters, passes through the spraying area, then moves through extract filters before being discharged or, where the design permits, treated further. Each stage has a separate job.

Intake filtration removes airborne dust and fibres before they reach the booth. This is particularly relevant where a booth draws air from a busy factory environment, a loading area or a workshop with cutting, sanding or fabrication nearby. Ceiling or plenum filters are commonly used to spread clean air evenly across the booth, helping to limit turbulence around the workpiece.

Extract filtration captures paint overspray before it reaches the fan and ductwork. In a crossdraft booth, this is often located at the rear extraction wall. In downdraft and semi-downdraft arrangements, filters may sit in floor trenches, raised floor pits or low-level extract sections. The filter media holds paint particulate while allowing sufficient air to pass through the system.

The principle is straightforward, but performance relies on the parts working together. A high-efficiency filter that restricts airflow too quickly can be as problematic as a low-grade filter that allows excess overspray through. Filtration must be selected with the fan duty, duct layout and required air velocity in mind.

The filter stages that affect finish quality

A typical system may include intake pre-filters, final ceiling filters and extract filters. Some applications also need additional stages, particularly where discharge requirements, coating chemistry or local site conditions call for more control.

Intake pre-filters

Pre-filters are the first barrier against larger dust particles and workshop debris. They extend the life of finer final filters by stopping heavier contamination earlier in the process. In facilities close to roads, fabrication bays or timber processing areas, these filters can load faster than expected.

Their value is often overlooked because they do not sit directly above the job. However, a neglected pre-filter can reduce incoming airflow and upset the pressure balance within the booth. That can lead to poor extraction, greater contamination risk and more frequent replacement of downstream filters.

Ceiling and final intake filters

Final intake filters are selected for cleaner air delivery and even distribution. Their construction matters: a filter that performs well in terms of particle retention but produces uneven air movement can still contribute to dry spray, dust settlement or inconsistent finish appearance.

For higher-specification refinishing, the aim is not simply to make the air cleaner. It is to supply it consistently across the full booth area. This becomes more difficult with large panels, long fabricated items or multiple components on an overhead track, where obstruction and product shape can alter airflow patterns.

Extract filters

Extract filters are the working filters of the booth. Their main role is to capture overspray while maintaining adequate airflow for as long as practical. Media may be supplied in pads, rolls, bags or specialist high-holding-capacity formats depending on the booth and coating process.

Paint type makes a difference. Wet, high-solids or heavily pigmented coatings can load filters quickly. Powder coating, solvent-based paint and water-based coatings may each require a different approach to media selection and replacement planning. It is not sensible to choose an extract filter on unit price alone if it causes frequent changes or puts strain on the extraction fan.

Airflow, pressure and filter loading

Every filter creates resistance as air passes through it. As it collects contamination, that resistance increases. The extraction fan must work harder to maintain the designed airflow, and eventually it may no longer achieve it.

Reduced airflow has clear practical consequences. Overspray may linger in the booth, the operator’s visibility can worsen, and paint can settle back onto freshly coated surfaces. In heated spray booths, poor airflow can also affect temperature control and drying performance. The issue is not always immediately obvious, especially in a booth that has gradually lost performance over several months.

Pressure gauges or differential pressure monitoring provide a useful indication of filter condition. They do not replace visual checks, because overspray distribution and damage can be seen before a reading reaches its limit, but they give maintenance teams an objective basis for scheduling changes. Record the readings after new filters are fitted, then compare future results against that baseline.

A booth should also maintain its intended pressure relationship with the surrounding workshop. Excessive negative pressure can draw unfiltered air through door gaps and openings. Excessive positive pressure can make doors difficult to operate and allow air to escape where it should not. The correct balance depends on the booth design and site arrangement, so it should be checked during commissioning and after significant changes to filters, fans or ductwork.

Choosing a filtration arrangement for the application

The starting point is the process, not the catalogue. Consider what is being sprayed, how often, the largest product dimensions, the finish standard and the available workshop space. A business spraying a few steel assemblies each week has different needs from a production facility coating components across several shifts.

It is also necessary to assess the building. The air quality around the booth, position of external intake points, available power supply, duct route, roof structure and discharge location all influence the final specification. Retrofitting a higher-capacity fan without reviewing the existing filters and ductwork can create noise, imbalance and unnecessary energy use rather than solve the underlying issue.

For many projects, the most useful questions are practical ones:

• Is the current problem dust in the finish, visible overspray, slow drying or frequent filter blockage?
• Does the booth have enough extraction capacity for the spray guns, products and coating volumes in use?
• Can filters be accessed and changed safely without disrupting production for extended periods?
• Are there nearby processes, such as sanding, welding or timber cutting, that are contaminating intake air?

The answers often point to a broader improvement than simply changing filter media. A better intake location, revised extract arrangement, improved booth sealing or a planned maintenance routine may provide the lasting benefit.

Maintenance is part of the system design

Filters are consumable items, but filter management should not be treated as an afterthought. A practical maintenance plan sets out inspection intervals, pressure limits, change procedures and safe disposal arrangements. It should also identify who is responsible for checking the filters and recording the results.

Visual inspection is especially useful for intake filters. Darkened or unevenly loaded sections may indicate local contamination or poor airflow distribution. On extract filters, look for heavy build-up, paint breakthrough, loose media and gaps around frames or retaining sections. A small bypass gap can allow overspray into ductwork and reduce the benefit of an otherwise suitable filter.

When filters are changed, check the booth rather than fitting the replacements and moving on. Inspect fan belts or drives where applicable, clean accessible plenums and extraction areas, and check that doors, seals and grilles are in good condition. This is also a sensible time to review airflow readings. If new filters do not restore expected performance, the cause may be a fan issue, blocked ductwork or an incorrect system setting.

Avoiding false economies

The cheapest filter is rarely the lowest-cost choice over a year of production. A lower-capacity extract medium may need frequent replacement, increase downtime and let more overspray reach the fan and ducts. Conversely, specifying a very fine, expensive filter where the application does not need it can add resistance and operating cost without improving the finish.

The sensible approach is to select media that suits the application and to measure what happens in service. Track filter life, pressure readings, paint usage, rework and cleaning time. These figures show whether the arrangement is genuinely working for the business.

A well-planned filtration system does more than keep a booth tidy. It gives operators cleaner conditions, helps protect costly equipment and makes finish quality easier to control. When reviewing a new booth or an upgrade, treat filtration as a core part of the process – because the air moving through the booth is part of every job you spray.
