When should you change your spray booth filters?

There isn’t a useful answer that says “every three months” or “every 500 hours”. Filter life depends on what you’re spraying, how often the booth is used and how much overspray the filters are actually collecting.

The better approach is to watch what the booth is doing.

If extraction starts to fall away, the filters are heavily loaded or the booth is no longer behaving as it normally does, the filters need checking. Waiting until they are completely clogged isn’t a sensible maintenance strategy.

Don’t judge a filter by its colour alone

This is one of the easier mistakes to make.

A filter can look dirty and still be allowing air through reasonably well. Equally, a filter that doesn’t look particularly bad can have accumulated enough material to increase resistance significantly.

That’s why “change it when it looks dirty” isn’t a particularly good rule.

The filter is there to catch overspray. It is supposed to get dirty.

What matters is how much material has built up and what effect that is having on airflow.

For a booth that’s used regularly, checking the filters should be part of normal maintenance rather than something you only think about when the booth starts performing badly.

Reduced airflow is a much better warning sign

As paint builds up in the filter media, the resistance to airflow increases.

The fan is still running, but that doesn’t mean the booth is extracting as it should.

This is an important distinction. If someone tells you “the fan is running, so the extraction must be fine”, that doesn’t necessarily follow. The fan can be operating normally while a loaded filter is restricting the amount of air the system can actually move.

If you’ve noticed that the airflow feels weaker than it used to, check the filters before assuming the fan itself has developed a fault.

There are other possible causes, including problems with ductwork, dampers or the fan, but filters are one of the first things worth checking.

What does a blocked filter actually do?

A heavily loaded filter increases the resistance the fan has to work against.

The result depends on the particular fan and extraction system, but the general problem is straightforward: the more resistance in the system, the harder it becomes to maintain the intended airflow.

That matters because a spray booth isn’t simply a room with a fan attached to it. The extraction system has been specified to move a certain amount of air through the booth and filtration system.

Change the resistance significantly and you can change the operating conditions.

This is why filter replacement isn’t just about keeping the booth looking clean.

How often should you replace them?

There isn’t a universal replacement interval.

A booth used for a few hours a week to spray small components could go considerably longer between filter changes than one used throughout the working day for vehicle or production spraying.

The amount and type of paint being sprayed also matter.

For example, a busy production environment generating large amounts of overspray will load filters much faster than occasional use.

The sensible approach is to establish a maintenance routine based on your actual usage rather than choosing an arbitrary date on the calendar.

Start by checking the filters regularly. Once you have some history, you’ll have a much better idea of how quickly your particular booth loads them.

Keep an eye on pressure if your system has a gauge

If your booth has a pressure differential gauge across the filter section, use it.

It’s far more useful than guessing from appearance.

The gauge gives you an indication of the resistance created by the filters. As the filters load, the pressure differential can increase.

The manufacturer’s specified change-out point should be used where one is available.

If there isn’t a gauge, you’re left relying more heavily on visual inspection and changes in airflow, which makes regular physical checks more important.

Don’t ignore the other filters

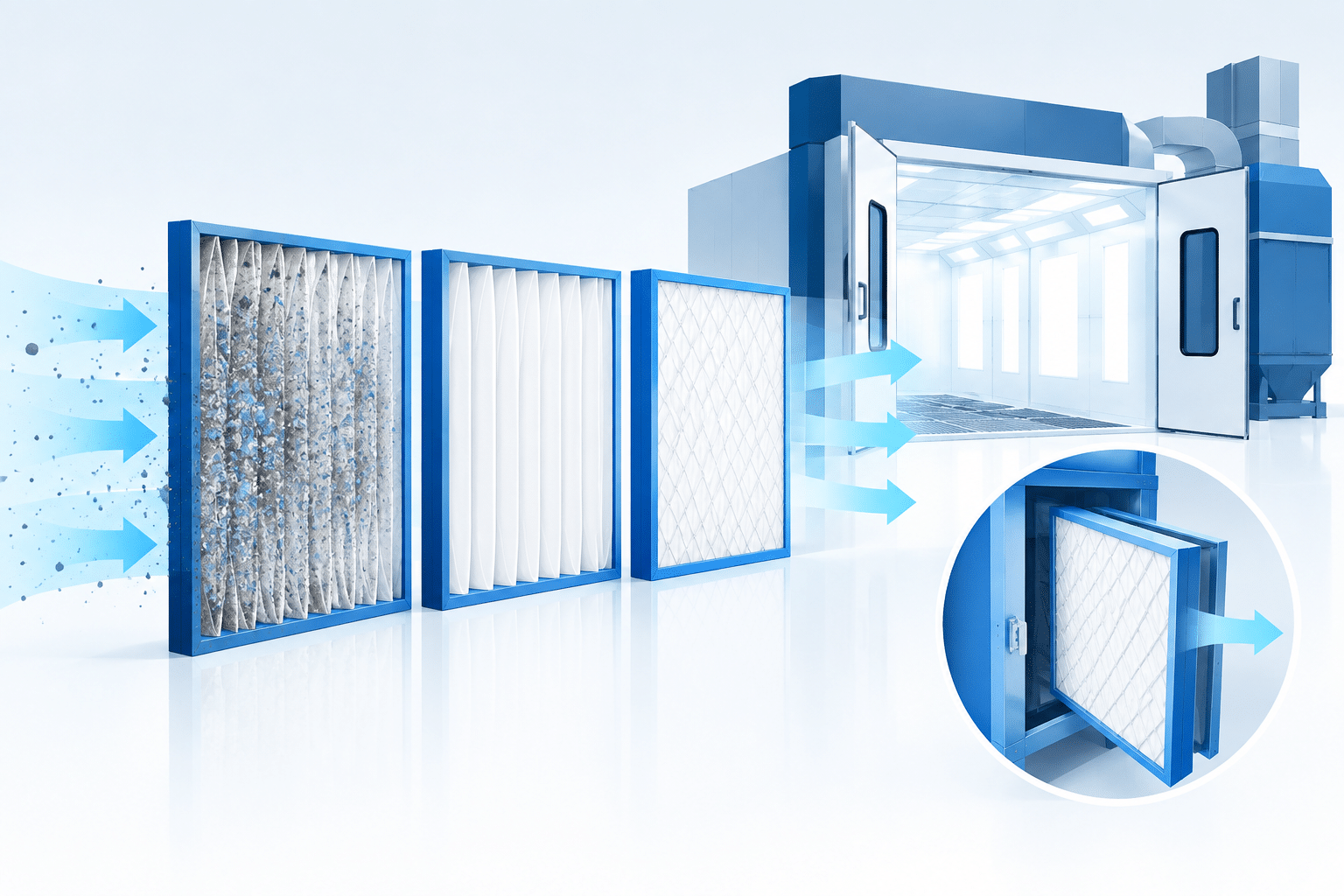

A spray booth can have more than one stage of filtration, and they don’t necessarily need changing at the same time.

For example, a system may have an incoming-air filter and a separate extraction filter. The two filters are doing different jobs and will load at different rates.

This is another reason a blanket rule such as “change the filters every six months” can be misleading.

Look at the filtration stages individually.

What about the extraction filters?

Extraction filters are particularly important because they’re collecting the material that has passed through the working area.

Once the filter becomes heavily loaded, extraction performance can suffer.

For dry filter spray booths using replaceable media, the condition of the extraction filter should therefore form part of the normal booth inspection routine.

At APEX, for example, different booth configurations use different filtration arrangements, so the correct replacement filter depends on the system rather than simply the size of the room.

If you’re ordering replacement filters, check the actual filter type and dimensions rather than assuming that any filter of roughly the right size will do.

What happens if you leave them too long?

The obvious problem is restricted airflow, but that’s not the only consideration.

A booth that’s struggling to extract properly can become harder to work in. Overspray can remain suspended for longer or accumulate where it shouldn’t, and the operator may notice that the booth simply doesn’t behave as it normally does.

There’s also a practical maintenance issue.

Once filters become heavily loaded, you’re no longer dealing with a routine replacement. You’re dealing with a filtration system that’s been allowed to operate under increasingly restricted conditions.

That’s an avoidable situation.

Don’t replace filters too early either

There is another side to this.

Replacing filters unnecessarily isn’t good maintenance either.

Filters are consumable items. Changing them long before they need replacing simply increases running costs without necessarily improving the booth’s performance.

The objective isn’t to keep the filter looking new.

The objective is to keep the filtration system operating within its intended range.

That’s why monitoring the actual condition of the filters is more useful than following a completely arbitrary replacement timetable.

A simple maintenance routine

For a regularly used booth, a straightforward routine is usually enough:

Check the filters regularly.

Look for excessive paint loading, physical damage and anything unusual.

Check the airflow.

If extraction feels noticeably different, investigate rather than assuming it’s normal.

Check the pressure gauge if fitted.

Record readings if the booth is used heavily. Trends can be more useful than a single reading.

Replace the filter when the manufacturer’s change-out criteria are reached.

Don’t wait until the filter is completely blocked.

Record the replacement.

Once you’ve recorded a few changes, you’ll start to see how quickly the filters are loading under your particular working conditions.

The easiest mistake to avoid

Don’t treat spray booth filters as something you change on a fixed date and forget about until the next one.

The actual replacement interval depends on the work being carried out.

A booth spraying all day will load its filters differently from one used occasionally. A production line will be different again.

Monitor the system, check the filters and use the manufacturer’s recommendations where available.

And if the extraction suddenly isn’t performing as it normally does, check the filters before assuming you’ve got a problem with the fan.

A filter is a relatively simple component, but it has a direct effect on the way the whole extraction system operates.
